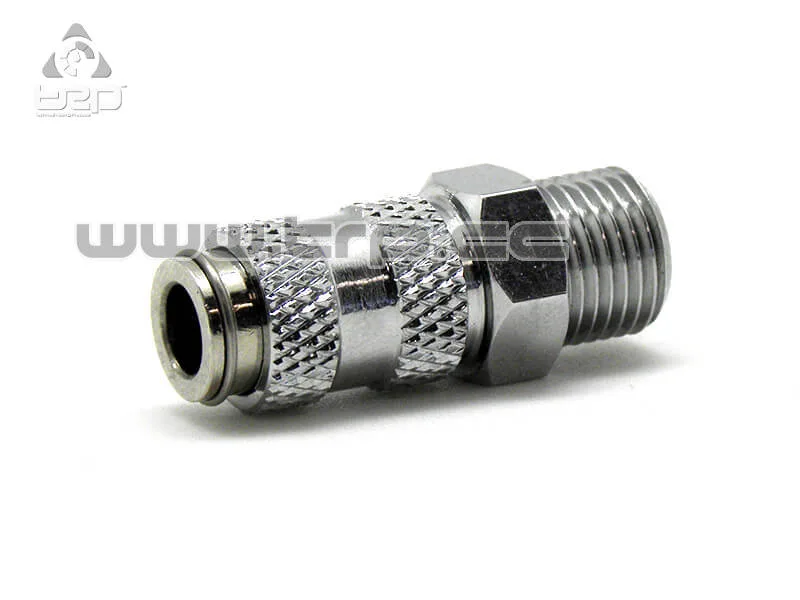

TC 1 / 8ps female connector (fast)

Quick connector that allows to connect and disconnect the airbrush gun from the air tube coming from the compressor in a very agile way, without having to screw or unscrew every time.

This piece should be screwed to the end of the air tube coming from the compressor. For this, it uses 1/8 threads.

To be able to use this piece we must mount on the airbrush gun the male connector (PTD011), also with 1/8 pitch thread. By joining the two pieces we can connect and disconnect in an agile way and without losing the air from the reservoir or the air tube of the compressor, because this female connector also has the function of cutting the air passage while the assembly is disconnected.

This system of male-female quick connectors is usually used when we have several airbrush guns. It will be very convenient to connect each of them with the air tube of the compressor without having to screw or unscrew each time. For that reason, they usually have more male quick connectors (PTD011) than female quick connectors. A quick male connector for each airbrush gun and a single female quick connector for the compressor tube.
