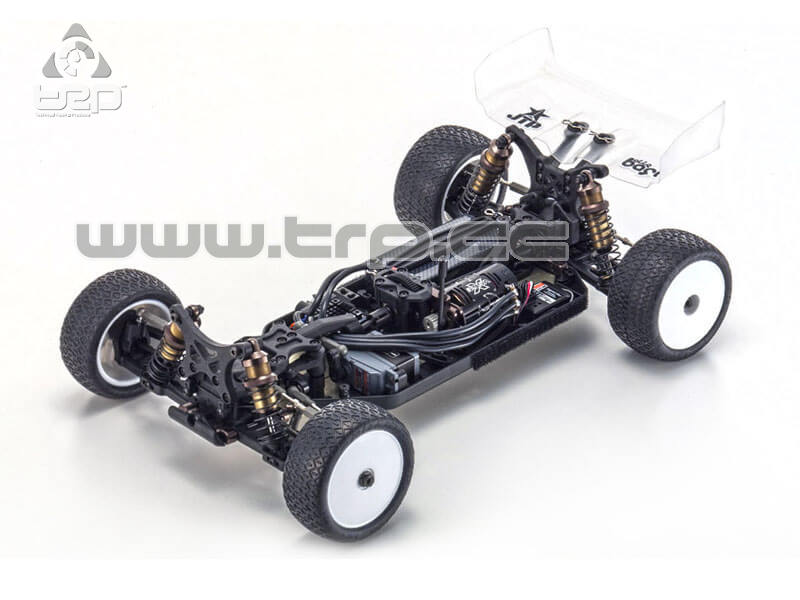

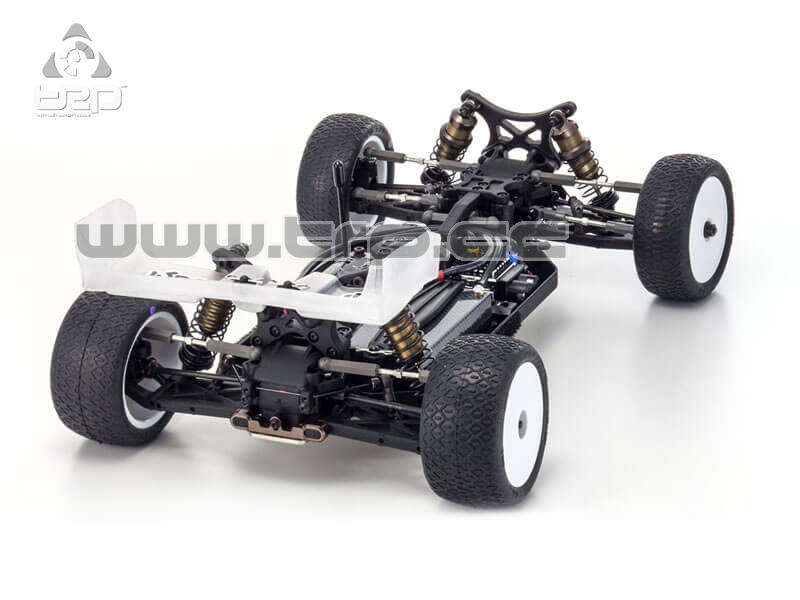

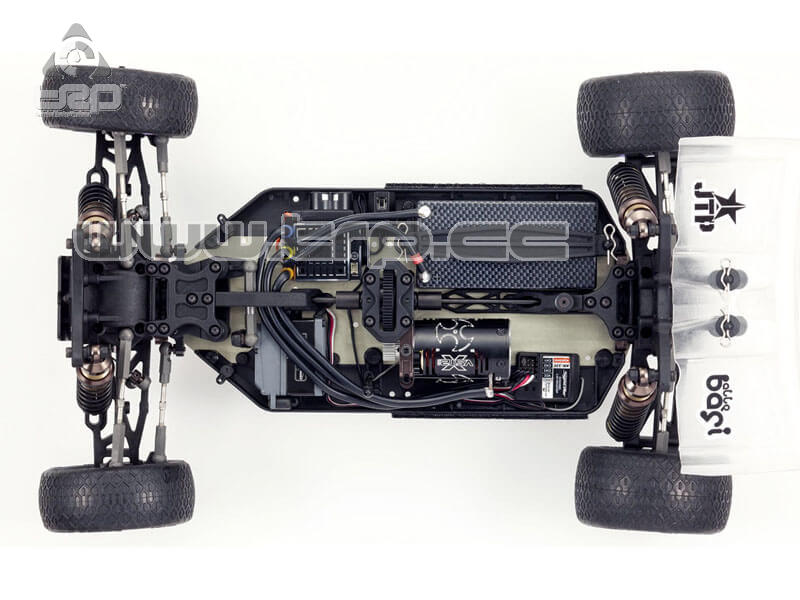

Kyosho Lazer ZX6.6 4WD Buggy kit

1/10 scale chassis of the Lazer ZX6.6 4wd model in KIT format (To assemble) manufactured by Kyosho.

This Lazer ZX6.6 chassis is designed purely for competition, to meet the demands for more power and greater grip of today's 1/10 electric buggy races.

While maintaining the controlled response and maneuverability of the ZX6 model, the ZX6.6 version includes a number of small changes to keep it competitive at the highest level.

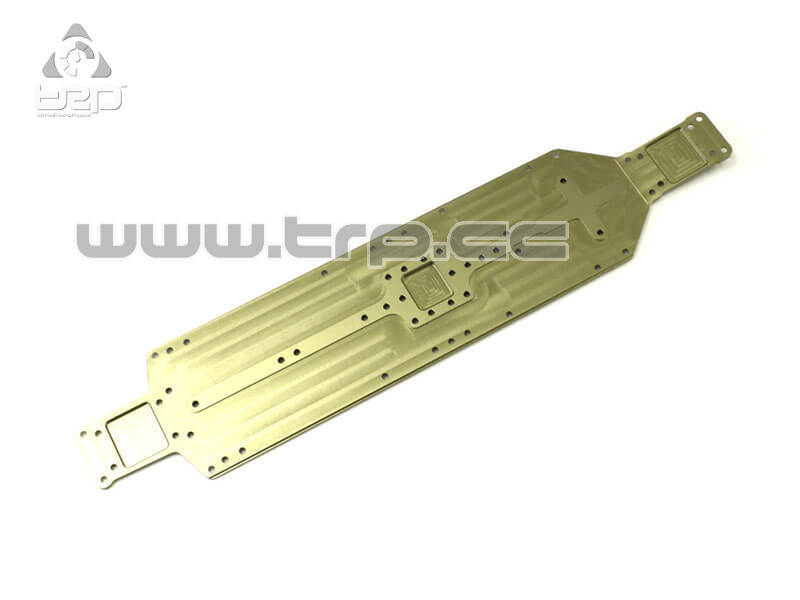

To increase traction and stability in competitions on high-grip surfaces, the ZX6.6 has been equipped with an HD aluminum chassis. Other changes in the main gear area and from the slipper clutch to the differential provide much smoother traction in all racing conditions.

Furthermore, the inclusion of the gull-wing rear wishbones, as seen on the ULTIMA RB6.6, allows for enhanced suspension performance, ideal for very bumpy tracks and sustained cornering. These changes combine to increase the overall chassis performance and result in improved overall balance for this racing machine.

Features of this LAzer ZX6.6 chassis

- Midship engine with 4WD driveshaft
- Upper subframe parts made of A7075-T6 Duralumin
- Side chassis fins that increase its rigidity

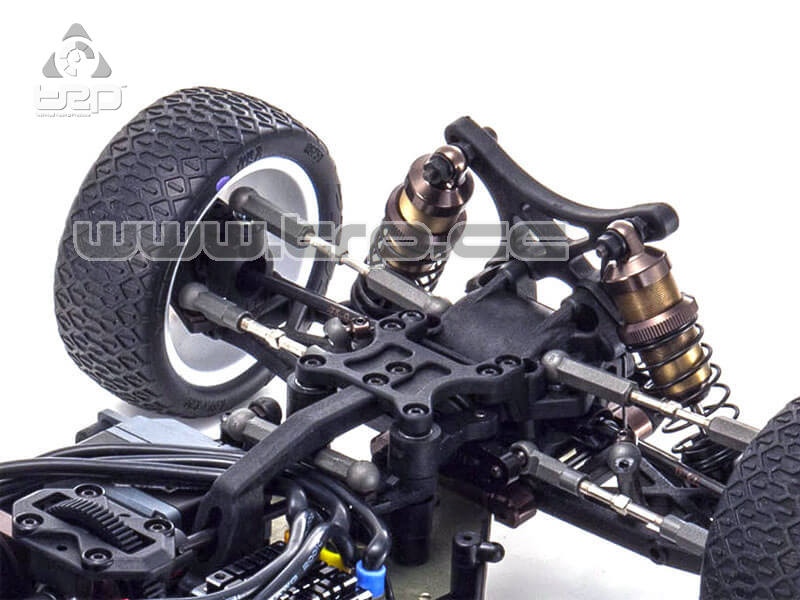

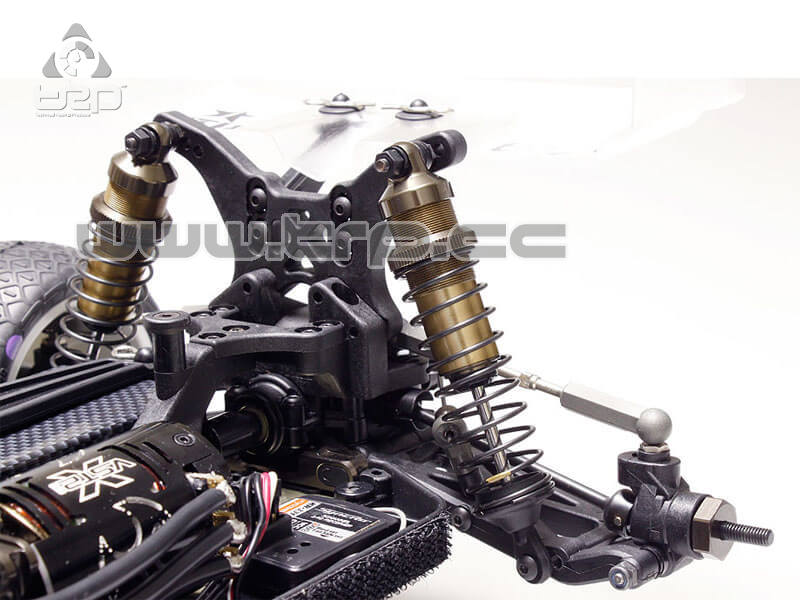

- Double wishbone suspension, independent on all 4 wheels, with adjustable upper wishbone (inverters)
- Front and rear axles equipped with drive shafts with constant velocity joints

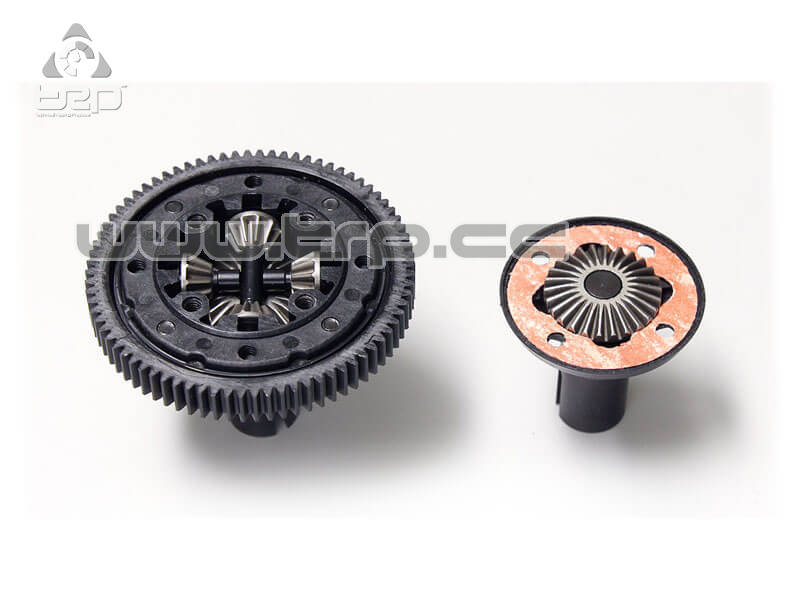

- Ball differentials include tungsten balls
- Aluminum steering distributor that guarantees a linear control feel
- The wheel hexagons provide a secure attachment of the wheels

Contents of this Kit

• Chassis for mounting
• Transparent body and spoiler
• 1.5, 2, 2.5mm Hex Key (Allen)
• Cross wrench
• X-GEAR differential grease, graphite grease, shock absorber springs
• Motor pinion

The following is needed for its implementation:

• 2ch radio equipment.
• Brushless motor and electronic speed controller (ESC).
• LiPo battery 7.4v 2(S).
• Tires and Inserts
• Battery charger
• Body paint
• Tools

Technical data
