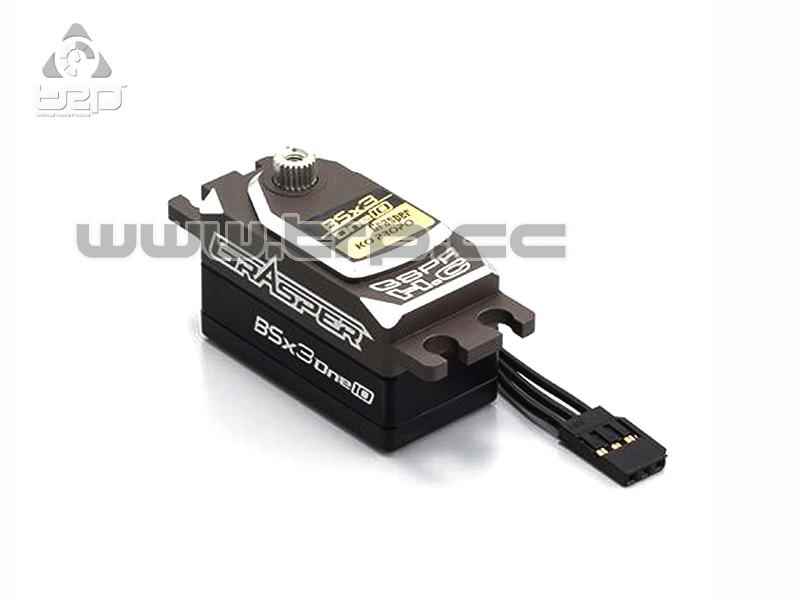

KO Propo Servo BSx3-one10 Grasper (0.09sec/60 10.8Kg)

High-end, low-profile digital servo compatible with the HCS system , model BSX3 One10 GRASPER , manufactured by KO Propo .

Specifications of the BSX3 One10 Grasper servo

Speed: 0.09s@60°(7.4V) / 0.10s@60°(6.0V)
Power: 10.8kg-cm(7.4V) / 8.0kg-cm(6.0V)
Dimensions: 40.5 x 26 x 21 mm
Weight: 51.0g

It features an aluminum servo housing top cover and hardened aluminum gears, which are much stronger and lighter than plastic or composite gear assemblies. The servo housing's central section is also made of this material for heat dissipation.

For which vehicles do we recommend this high-performance servo?

The BSX3 One10 Grasper servo is designed for use in the steering mechanism of 1/10 scale electric or gasoline-powered model cars . Its rotation speed and power make it perfect for this position on the chassis.

The fact that it has a low-profile case also makes it easier to use in vehicles such as rear-wheel drive Formula 1 cars or all-terrain chassis, with rear-wheel drive or 4x4 (all in 1/10 scale), where space for placing electronic elements is very limited.

What features stand out in the BSX3 One10 Grasper?

This Response -type servo (fast response, designed for the steering system of 1/10 scale RC vehicles) comes standard, configured to operate at both 6V and 7.4V . To program this servo and modify its characteristics, you will need a PC and the ICS USB HS adapter along with the " Servo Model Selector " device, both sold by KO Propo. For example, in this case, selecting Memory 1 in the "Servo Model Selector" will make power the servo's primary characteristic (for managing channel 2, which controls the throttle/brake of a gasoline-powered car, for example), while Memory 2 will contain the original factory settings (good performance for channel 1, which controls the right/left steering of an RC car).

Can this high-performance servo work in HCS mode?

Indeed, this BSX3 One10 Grasper servo is designed to operate at HCS ( High-Speed Communication System ). This innovative system, included by KO Propo in their competition-oriented devices, significantly reduces the time it takes for the radio signal to travel from the receiver to the servo. Therefore, to utilize this fast-response communication system, you will need an HCS-compatible KO Propo receiver (the KO Propo KR-115FHD ) and a small "RX Mode Selector" device that allows you to activate HCS mode on the channel to which you will connect this servo.

With the HCS system we do not modify the working speed of the servo but the time it takes to receive the signal from the transmitter.
